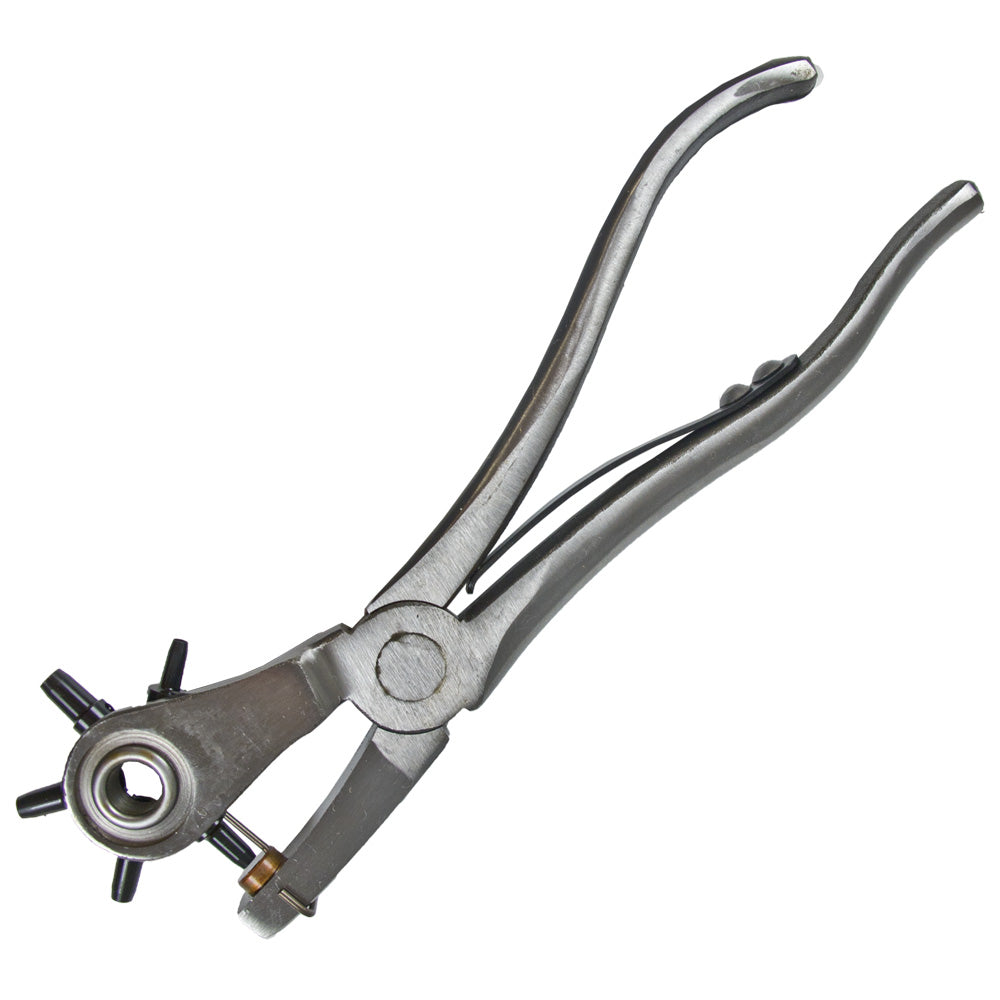

Professional Rotary Punch

Product Type: Rotary Punch
Style: Professional / Replaceable Tube
Material: Solid Steel
Tool Length: Approx. 9"
Item Number: 28-3240

The Professional Rotary Punch is a heavy-duty hand punch made from hand-forged solid steel for durability and dependable performance. The rotating head gives you six common hole sizes in one tool, making it easy to switch from small hardware and stitching holes to larger belt and strap applications without reaching for a separate punch.

A copper anvil supports the leather beneath the cutting tube. Copper is softer than the steel punch tubes, so it gives the cutting edge a proper surface to punch against without damaging or dulling the tube as quickly as a harder anvil would.

The punch comes with six pre-installed, replaceable tubes:

#0: 2.0 mm (5/64")
#1: 2.3 mm (3/32")
#2: 3.1 mm (1/8")
#3: 3.5 mm (9/64")
#4: 4.0 mm (5/32")
#6: 4.8 mm (3/16")

Use the smaller sizes for fine straps, stitching holes, and smaller hardware, then move up through the larger tubes for snaps, rivets, buckles, belts, tack, and other projects that need a larger opening. Rotate the wheel until the desired tube is securely positioned over the anvil, place the leather between the jaws, and squeeze the handles to make the cut.

Unlike punches with permanently fixed tubes, the threaded steel tubes on this model can be replaced when they eventually become dull or damaged.

Please Note: Punch tubes are extremely sharp. Keep fingers clear of the cutting area and make sure the selected tube is properly aligned with the copper anvil before squeezing the handles.
